Manufacturer: JOM Car Parts & Car Hifi GmbH

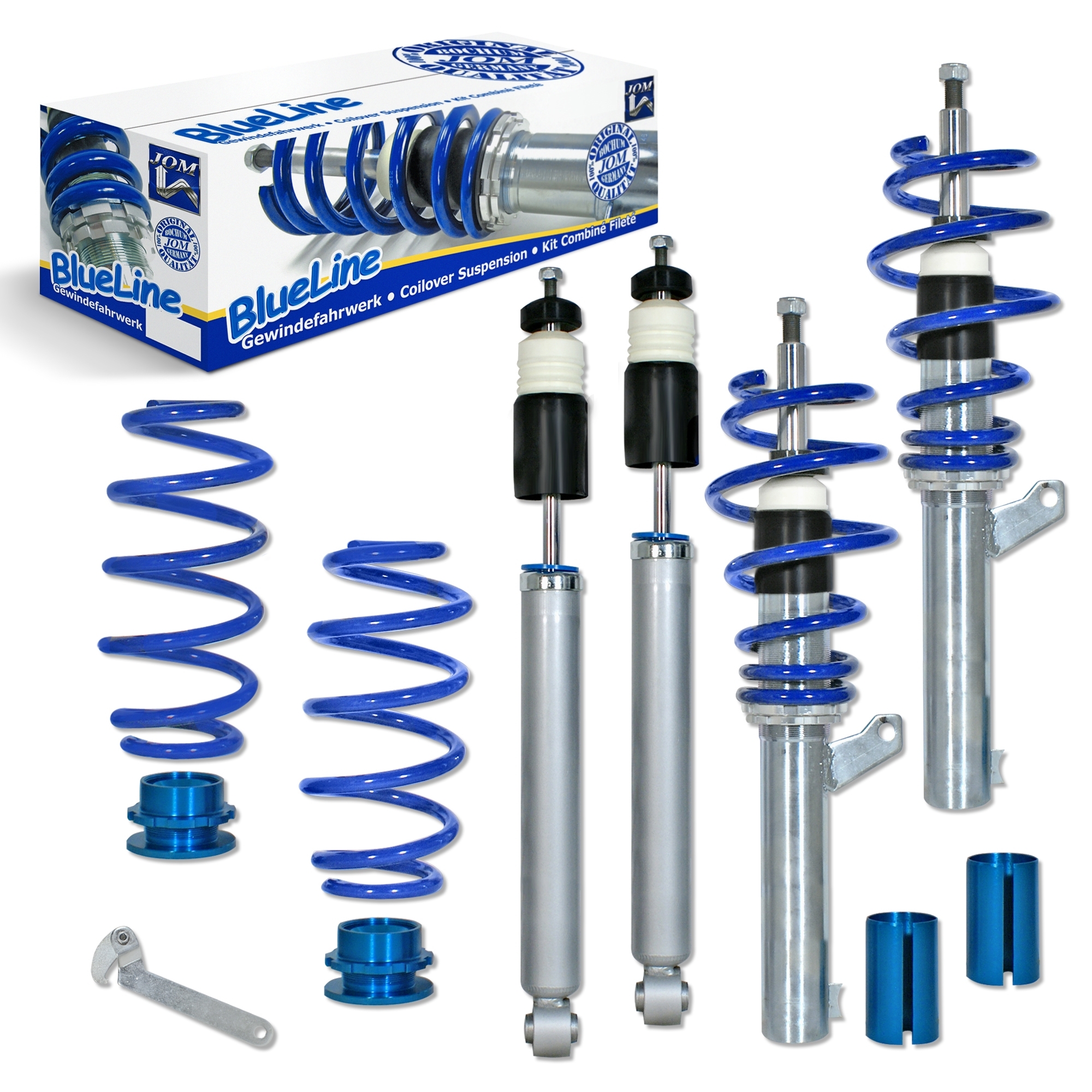

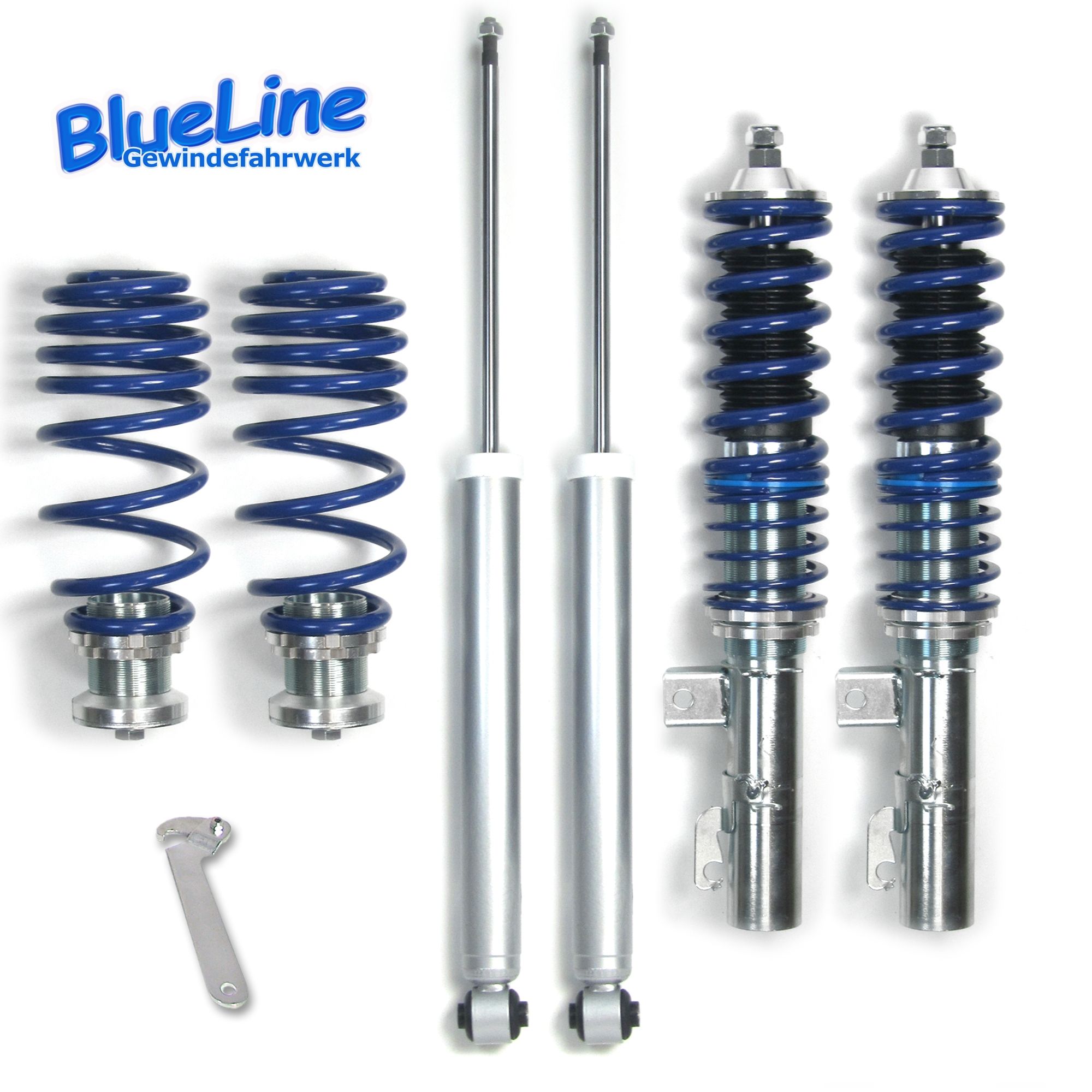

Blueline Coilover Kit suitable for Seat Leon Cupra R (1M) 1.8 20V Turbo year 04.2002-, except vehicles with four-wheel drive

Product.Nr.: 741143

Manufacturer: JOM Car Parts & Car Hifi GmbH

  • 🔴 Currently not available 🔴 Currently not available
  • weight 21,5 kg

product description

The BlueLine coilover suspension kits are highgrade car-specific suspension components with a lowering on frontaxle between 20 - 55 mm and on the rearaxle between 30 - 50 mm. The range of adjustment gives an individual body lowering. The kits have a huge transverse force absorption. The initial spring tension survives in complete range of adjustment. Adjustment after installation. Car-specific versions: front thread / rear spring.

  • adjustable range FA 20-55 mm / RA 30-50 mm
  • max. axle load FA 1030 Kg / RA 845 Kg
  • §19.3 certificate
  • EPC powder coated cold winded spring
  • damper galvanised

Downloads

doc_741143_741107.pdf Gutachten (0.25 MB)

doc_741143_Allgemeine_Montageanleitung.pdf Anleitung (0.24 MB)

Compatibility


Manufacturer Vehicle Construction year HSN/TSN
Seat Leon 1.8 T Cupra R 1781 ccm, 154 KW, 209 PSHSN / TSN: 7593|008
Plattform : 1M1
02.2002 - 06.2006 7593|008
Seat Leon 1.8 T Cupra R 1781 ccm, 165 KW, 225 PSHSN / TSN: 7593|009
Plattform : 1M1
07.2003 - 06.2006 7593|009
