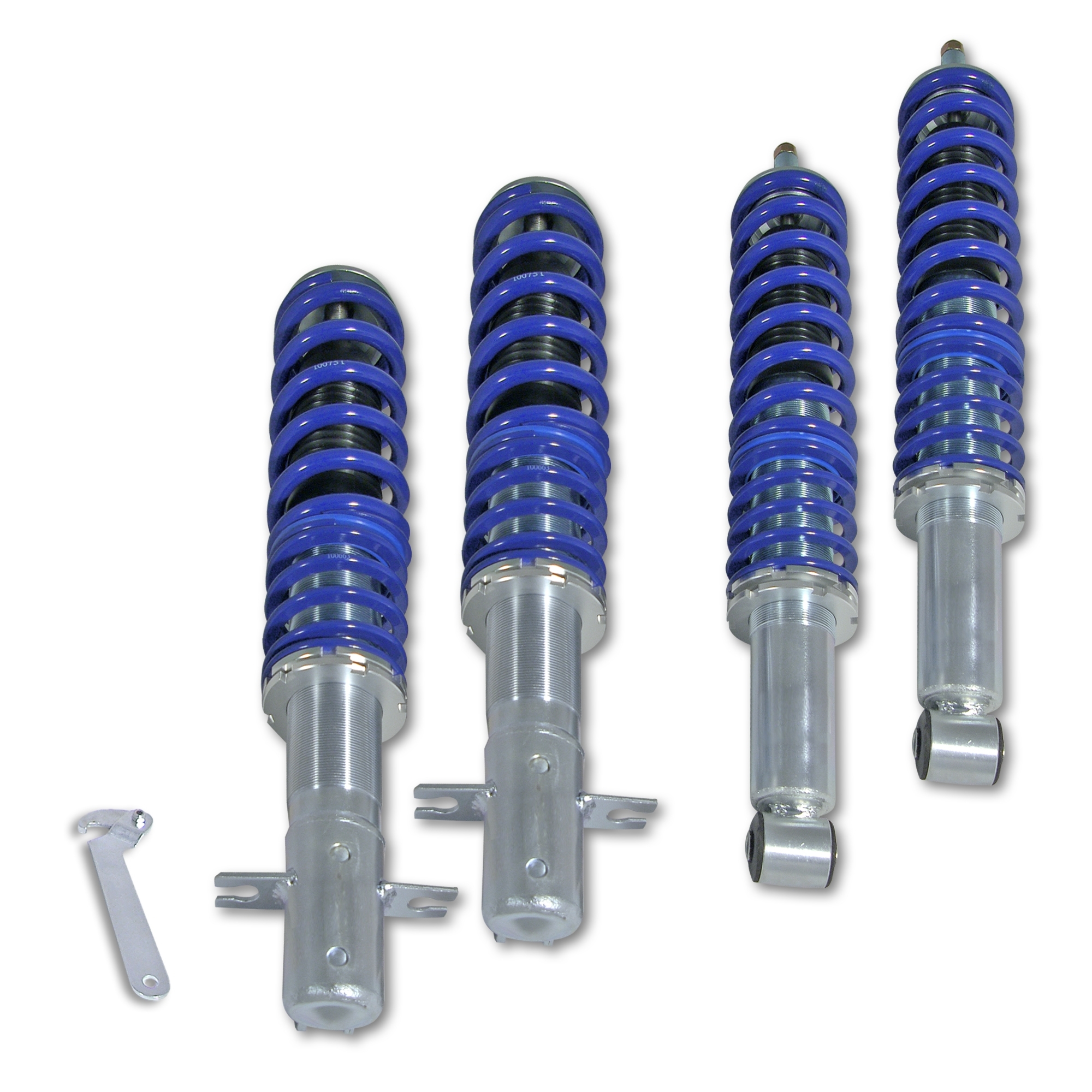

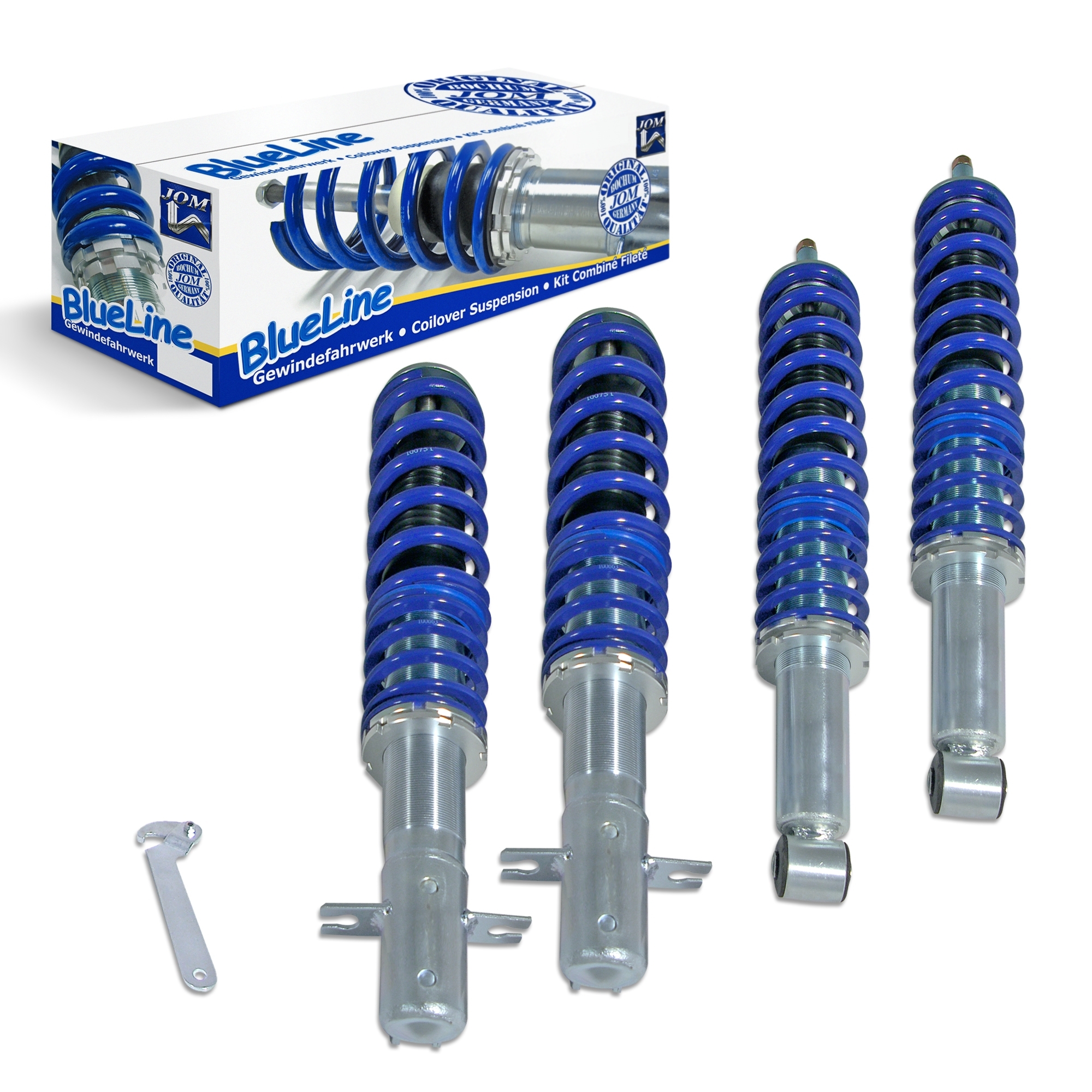

BlueLine Coilover Kit suitable for VW Golf 1 year 1974-8.1983, Golf 1 Cabrio year 9.1979-6.1993 (155), Scirocco 1 and 2 (53/B)
Product.Nr.: 741006
Manufacturer: JOM Car Parts & Car Hifi GmbH
product description
The BlueLine coilover suspension kits are highgrade car-specific suspension components with a lowering on front- and rearaxle between 25-80 mm. The range of adjustment gives an individual body lowering. The kits have a huge transverse force absorption. The initial spring tension survives in complete range of adjustment. Adjustment after installation. Car-specific versions: front thread / rear thread.
- adjustment range FA / RA 25-80 mm
- max. axle load FA 785 Kg / RA 640 Kg
- §19.3 certificate
- EPC powder coated cold winded spring
- damper galvanised
Compatibility
Manufacturer | Vehicle | Construction year | HSN/TSN |
---|---|---|---|
VW | Golf I 1.1 1093 ccm, 37 KW, 50 PSHSN / TSN: 0600|464<>0600|845<>0600|846<>0600|851 Plattform : 17 |
04.1974 - 07.1983 | 0600|464<>0600|845<>0600|84... |
VW | Golf I 1.1 1093 ccm, 38 KW, 52 PSHSN / TSN: 0600|534 Plattform : 17 |
08.1976 - 07.1980 | 0600|534 |
VW | Golf I 1.3 1272 ccm, 43 KW, 58 PSPlattform : 17 | 08.1982 - 12.1983 | |
VW | Golf I 1.3 1272 ccm, 44 KW, 60 PSHSN / TSN: 0600|524 Plattform : 17 |
08.1979 - 07.1983 | 0600|524 |
VW | Golf I 1.5 1457 ccm, 51 KW, 70 PSHSN / TSN: 0600|497<>0600|852 Plattform : 17 |
08.1977 - 07.1983 | 0600|497<>0600|852 |
VW | Golf I 1.5 1471 ccm, 51 KW, 70 PSHSN / TSN: 0600|465<>0600|847<>0600|850 Plattform : 17 |
04.1974 - 12.1975 | 0600|465<>0600|847<>0600|850 |
VW | Golf I 1.5 D 1471 ccm, 37 KW, 50 PSHSN / TSN: 0600|489<>0600|528<>0600|848<>0600|849 Plattform : 17 |
08.1976 - 07.1980 | 0600|489<>0600|528<>0600|84... |
VW | Golf I 1.6 1588 ccm, 51 KW, 70 PSPlattform : 17 | 08.1975 - 07.1977 | |
VW | Golf I 1.6 1588 ccm, 55 KW, 75 PSHSN / TSN: 0600|477 Plattform : 17 |
08.1975 - 02.1984 | 0600|477 |
VW | Golf I 1.6 1595 ccm, 55 KW, 75 PSPlattform : 17 | 01.1983 - 02.1984 | |
VW | Golf I 1.6 D 1588 ccm, 40 KW, 54 PSHSN / TSN: 0600|536<>0600|853 Plattform : 17 |
08.1980 - 07.1983 | 0600|536<>0600|853 |
VW | Golf I 1.6 D 1588 ccm, 44 KW, 60 PSPlattform : 17 | 01.1982 - 07.1984 | |
VW | Golf I 1.6 GTI 1588 ccm, 81 KW, 110 PSHSN / TSN: 0600|478 Plattform : 17 |
08.1976 - 07.1982 | 0600|478 |
VW | Golf I 1.6 TD 1588 ccm, 51 KW, 70 PSHSN / TSN: 0600|557 Plattform : 17 |
03.1982 - 07.1983 | 0600|557 |
VW | Golf I 1.6 TD 1588 ccm, 55 KW, 75 PSPlattform : 17 | 08.1983 - 07.1985 | |
VW | Golf I 1.8 GTI 1781 ccm, 82 KW, 112 PSHSN / TSN: 0600|582 Plattform : 17 |
08.1982 - 12.1983 | 0600|582 |
VW | Golf I Cabriolet 1.3 1272 ccm, 40 KW, 54 PSPlattform : 155 | 08.1983 - 07.1986 | |
VW | Golf I Cabriolet 1.5 1457 ccm, 51 KW, 70 PSHSN / TSN: 0600|508 Plattform : 155 |
01.1979 - 11.1983 | 0600|508 |
VW | Golf I Cabriolet 1.6 1588 ccm, 55 KW, 75 PSPlattform : 155 | 08.1979 - 07.1983 | |
VW | Golf I Cabriolet 1.6 1588 ccm, 81 KW, 110 PSHSN / TSN: 0600|517 Plattform : 155 |
08.1979 - 07.1982 | 0600|517 |
VW | Golf I Cabriolet 1.6 1595 ccm, 53 KW, 72 PSHSN / TSN: 0600|676 Plattform : 155 |
04.1986 - 02.1990 | 0600|676 |
VW | Golf I Cabriolet 1.6 1595 ccm, 55 KW, 75 PSHSN / TSN: 0600|606 Plattform : 155 |
08.1983 - 04.1992 | 0600|606 |
VW | Golf I Cabriolet 1.8 1781 ccm, 66 KW, 90 PSHSN / TSN: 0600|607 Plattform : 155 |
08.1983 - 09.1992 | 0600|607 |
VW | Golf I Cabriolet 1.8 1781 ccm, 70 KW, 95 PSHSN / TSN: 0600|666 Plattform : 155 |
08.1983 - 04.1993 | 0600|666 |
VW | Golf I Cabriolet 1.8 1781 ccm, 72 KW, 98 PSHSN / TSN: 0600|804 Plattform : 155 |
08.1989 - 03.1993 | 0600|804 |
VW | Golf I Cabriolet 1.8 1781 ccm, 82 KW, 111 PSPlattform : 155 | 08.1983 - 12.1992 | |
VW | Golf I Cabriolet 1.8 1781 ccm, 82 KW, 112 PSHSN / TSN: 0600|587 Plattform : 155 |
08.1982 - 12.1989 | 0600|587 |
VW | Scirocco 1.1 1093 ccm, 37 KW, 50 PSHSN / TSN: 0600|467 Plattform : 53 |
04.1974 - 07.1979 | 0600|467 |
VW | Scirocco 1.3 1272 ccm, 40 KW, 55 PSPlattform : 53B | 08.1983 - 07.1984 | |
VW | Scirocco 1.3 1272 ccm, 44 KW, 60 PSHSN / TSN: 0600|525 Plattform : 53 |
08.1979 - 07.1980 | 0600|525 |
VW | Scirocco 1.3 1272 ccm, 44 KW, 60 PSHSN / TSN: 0600|553 Plattform : 53B |
08.1980 - 12.1983 | 0600|553 |
VW | Scirocco 1.5 1457 ccm, 51 KW, 70 PSHSN / TSN: 0600|496 Plattform : 53 |
08.1977 - 07.1980 | 0600|496 |
VW | Scirocco 1.5 1457 ccm, 51 KW, 70 PSHSN / TSN: 0600|554 Plattform : 53B |
08.1980 - 12.1983 | 0600|554 |
VW | Scirocco 1.5 1471 ccm, 51 KW, 70 PSHSN / TSN: 0600|468 Plattform : 53 |
02.1974 - 12.1975 | 0600|468 |
VW | Scirocco 1.5 1471 ccm, 55 KW, 75 PSHSN / TSN: 0600|462 Plattform : 53 |
02.1974 - 08.1975 | 0600|462 |
VW | Scirocco 1.5 1471 ccm, 63 KW, 86 PSHSN / TSN: 0600|463 Plattform : 53 |
02.1974 - 12.1977 | 0600|463 |
VW | Scirocco 1.6 1588 ccm, 51 KW, 70 PSPlattform : 53 | 08.1975 - 07.1977 | |
VW | Scirocco 1.6 1588 ccm, 55 KW, 75 PSHSN / TSN: 0600|483 Plattform : 53 |
08.1975 - 07.1979 | 0600|483 |
VW | Scirocco 1.6 1588 ccm, 55 KW, 75 PSPlattform : 53B | 08.1982 - 07.1983 | |
VW | Scirocco 1.6 1588 ccm, 63 KW, 85 PSHSN / TSN: 0600|484 Plattform : 53 |
08.1975 - 07.1980 | 0600|484 |
VW | Scirocco 1.6 1588 ccm, 63 KW, 85 PSHSN / TSN: 0600|555 Plattform : 53B |
08.1980 - 04.1984 | 0600|555 |
VW | Scirocco 1.6 1588 ccm, 81 KW, 110 PSHSN / TSN: 0600|485 Plattform : 53 |
06.1976 - 07.1980 | 0600|485 |
VW | Scirocco 1.6 1588 ccm, 81 KW, 110 PSHSN / TSN: 0600|556 Plattform : 53B |
08.1980 - 07.1982 | 0600|556 |
VW | Scirocco 1.6 1595 ccm, 51 KW, 70 PSPlattform : 53B | 08.1983 - 07.1984 | |
VW | Scirocco 1.6 1595 ccm, 53 KW, 72 PSHSN / TSN: 0600|702 Plattform : 53B |
04.1986 - 07.1990 | 0600|702 |
VW | Scirocco 1.6 1595 ccm, 55 KW, 75 PSHSN / TSN: 0600|588 Plattform : 53B |
01.1983 - 12.1989 | 0600|588 |
VW | Scirocco 1.8 16V 1781 ccm, 102 KW, 139 PSHSN / TSN: 0600|631 Plattform : 53B |
10.1985 - 07.1989 | 0600|631 |
VW | Scirocco 1.8 16V 1781 ccm, 95 KW, 129 PSHSN / TSN: 0600|703 Plattform : 53B |
03.1986 - 07.1992 | 0600|703 |
VW | Scirocco 1.8 1781 ccm, 66 KW, 90 PSHSN / TSN: 0600|609 Plattform : 53B |
08.1983 - 07.1992 | 0600|609 |
VW | Scirocco 1.8 1781 ccm, 70 KW, 95 PSHSN / TSN: 0600|667 Plattform : 53B |
11.1985 - 07.1992 | 0600|667 |
VW | Scirocco 1.8 1781 ccm, 82 KW, 112 PSHSN / TSN: 0600|589 Plattform : 53B |
08.1982 - 12.1989 | 0600|589 |
